Main Cylinder(mm)
D250
Horse Power
40 HP
30kW

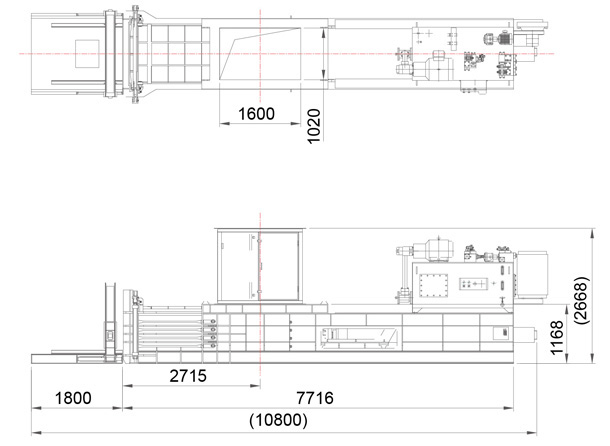

Feed Opening Dimensions(mm)
1600 × 1020
Bale Chamber(mm)
1100 × 750 × 3200
Bale Dimensions WxHxL (mm)
1100 × 750 × 1400 (Max.)
Production (OCC BASIC)(TPH)
1.5~2.5
Max Thrust Force
118000kg(240kg/cm2)
Cycle Time (Unload) ( kg/ m2)
14.3 sec
Cycle Time
(UNLOAD)(60 Hz & 1800rpm)
28.4 sec
Bale Density ( kg/ m3)
500~600
Alumn. Can ( kg/ m3))
350~450
Tin. Can ( kg/ m3)
550~720
PET( kg/ m3)
380~450
HDPE ( kg/ m3)
450~600
Plastic Film ( kg/ m3)
450~550
Wire Size (mm)
4
Machine Weight
15000kgs
