Main Cylinder
D200
Ejector Cylinder (mm)
D150
Horse Power
40 HP
30 K.W

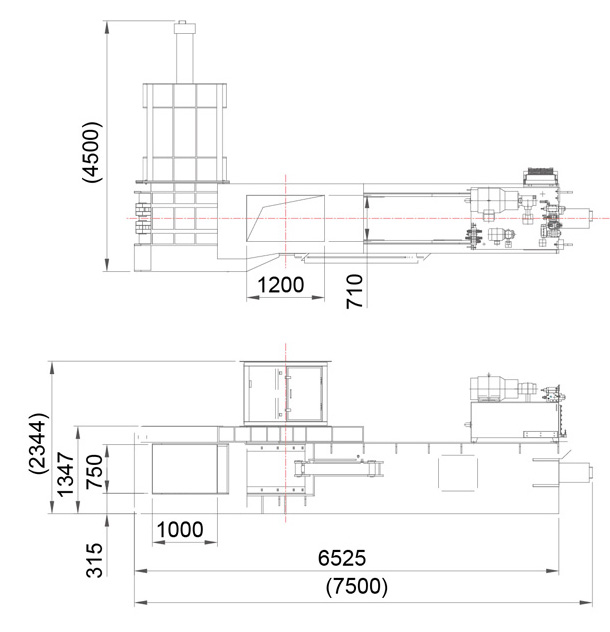

Feed Opening Dimensions(mm)
1200 × 710
Bale Chamber WxHxL (mm)
750 × 750 × 2650
Bale Dimensions WxHxL (mm)
750 × 750 × 1000
Production (OCC BASIC)(TPH)
3.5~5
Max Thrust Force
65 Ton (210kg / cm2)
Cycle Time (Unload) ( kg/ m2)
11.7
Cycle Time
(UNLOAD)(60 Hz & 1800rpm)
15.3 sec
Bale Density ( kg/ m3)
400~500
Alum. Can ( kg/ m3)
300~400
Tin Can ( kg/ m3)
450~600
PET ( kg/ m3)
300~380
HDPE ( kg/ m3)
360~480
Plastic Film ( kg/ m3)
360~440
Wire Size (mm)
15 mm (P.P帶 P.P BAND)
Machine Weight
12000kgs
